Installation

Running on Extended Displays

NEW FOR 2018: DO NOT INSTALL THE AUDIENCE DISPLAY ON OFFICIAL FIRST SERVERS ("SCORPION CASE #33") - USE ONLY THE REMOTE AUDIENCE DISPLAY MACHINE!

Installation on Remote Computers

The Audience Display version number 4.X and higher will not operate on Windows 7 machines.  Windows 8.1 is not officially supported, though should operate properly. Windows 10 or higher is the recommended operating system for best performance. As noted later, the machine running a remote Audience Display must also have an Ethernet port.

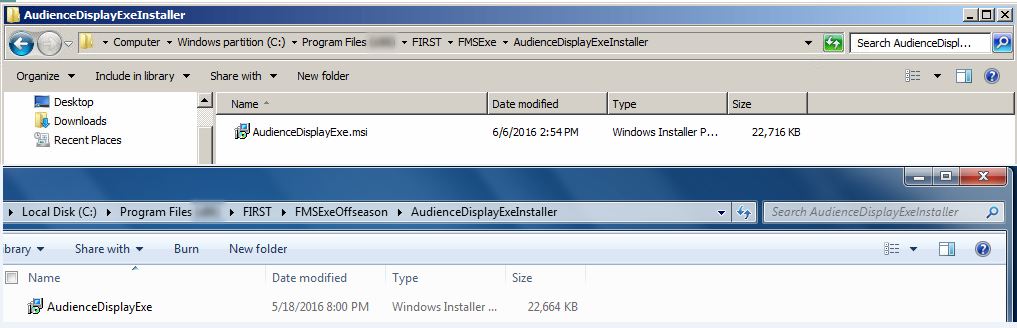

On the machine containing the full FMS installation (version 4.X or higher) using File Explorer to browse to the following location:

  • On most installations: C:\Program Files\FIRST\FMSExe\AudienceDisplayExeInstaller

Inside you will find an MSI (installer) filler called AudienceDisplayExe.msi

Copy the MSI file to the target machine, and run the installer by double-clicking the MSI file (you may need to "unblock" the file on a Windows 10 machine Properties menu).

Merely copying the contents of the "AudienceDisplayExe" folder to another computer is not sufficient, remote installations must be initiated by the MSI installer.

NEVER RUN THE AUDIENCE SCREEN INSTALLER ON A FIRST SERVER

Version Matching

When running on a remote computer, the Audience Display instance will verify itself against FMS to ensure the version numbers are the same. If they do not match, you’ll see an “FMS Mismatch” watermark shown on top of all screens until the version is updated/downgraded to match the FMS version.

Communicating with FMS

When using a remote installation, the Audience Screen must be connected to the machine hosting the FMS software via Ethernet (such as through a switch or router). In addition, the installation will tell Audience Display to look for FMS at the IP of 10.0.100.5. It's recommended recommended that you ping the FMS machine from the target remote Audience Display machine to make sure the Ethernet connection has been established properly.

It is recommended that there be no more than two (2) instances of the Audience Screen running on the FMS network at any given time. The software is not tested beyond this capacity.
